The latest updated Cisco 300-410 Exam Practice Questions and Answers Online Practice Test is free to share from Lead4Pass (Q1-Q13)

QUESTION 1

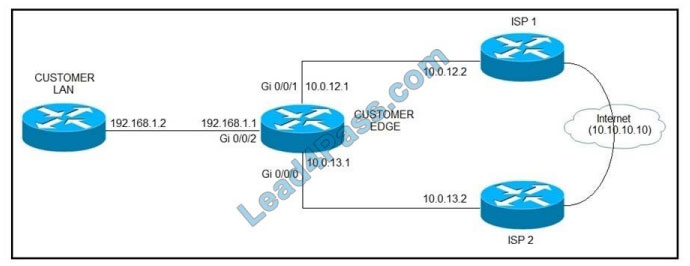

Refer to the exhibit. ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to achieve
redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console. Which command is missing
from the IP SLA configuration?

A. Start-time 00:00
B. Start-time 0
C. Start-time immediately
D. Start-time now
Correct Answer: D
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipsla/configuration/15-mt/sla-15-mtbook/sla_icmp_echo.html

QUESTION 2
Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected
through a common fiber?
A. shared risk link group-disjoint
B. linecard-disjoint
C. lowest-repair-path-metric
D. interface-disjoint
Correct Answer: B
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_eigrp/configuration/xe-3s/asr1000/ire-xe-3s
asr1000/ire-ipfrr.html

QUESTION 3
A network engineer is configuring a DHCP server to support a specialized application. Which additional DHCP feature
must be enabled to support the delivery of various additional parameters to DHCP clients?
A. modules
B. vendor extensions
C. options
D. Scopes
Correct Answer: C

QUESTION 4
Users were moved from the local DHCP server to the remote corporate DHCP server. After the move, none of the users
were able to use the network. Which two issues will prevent this setup from working properly? (Choose two)
A. Auto-QoS is blocking DHCP traffic.
B. The DHCP server IP address configuration is missing locally
C. 802.1X is blocking DHCP traffic
D. The broadcast domain is too large for proper DHCP propagation
E. The route to the new DHCP server is missing
Correct Answer: BE

QUESTION 5
A network administrator is troubleshooting a redistribution of OSPF routes into EIGRP.

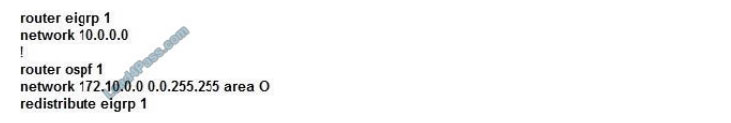

Given the exhibited commands, which statement is true?
A. Redistributed routes will have an external type of 1 and a metric of 1.
B. Redistributed routes will have an external type of 2 and a metric of 20.
C. Redistributed routes will maintain their original OSPF routing metric.
D. Redistributed routes will have a default metric of 0 and will be treated as reachable and advertised.
E. Redistributed routes will have a default metric of 0 but will be treated as unreachable and not advertised.
Correct Answer: B
By default, all routes redistributed into OSPF will be tagged as external type 2 (E2) with a metric of 20, except for BGP
routes (with a metric of 1).
Note:
The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route. A type 1 cost is
the addition of the external cost and the internal cost used to reach that route.

QUESTION 6
DRAG DROP
Drag and drop the packet types from the left onto the correct descriptions on the right.
Select and Place:

Unlike legacy network technologies such as ISDN, Frame Relay, and ATM that defined separate data and control
channels, IP carries all packets within a single pipe. Thus, IP network devices such as routers and switches must be
able to distinguish between data plane, control plane, and management plane packets to treat each packet
appropriately. From an IP traffic plane perspective, packets may be divided into four distinct, logical groups:
1.
Data plane packets -End-station, user-generated packets that are always forwarded by network devices to other endstation devices. From the perspective of the network device, data plane packets always have a transit destination IP
address and can be handled by normal, destination IP address-based forwarding processes.
2.
Control plane packets -Network device-generated or received packets that are used for the creation and operation of
the network itself. From the perspective of the network device, control plane packets always have a received destination
IP address and are handled by the CPU in the network device route processor. Examples include protocols such as
ARP, BGP, OSPF, and other protocols that glue the network together.
3.
Management plane packets -Network device-generated or received packets, or management station generated or
received packets that are used to manage the network. From the perspective of the network device, management plane
packets always have a receive destination IP address and are handled by the CPU in the network device route
processor. Examples include protocols such as Telnet, Secure Shell (SSH), TFTP, SNMP, FTP, NTP, and other
protocols used to manage the device and/or network.
4.
Services plane packets -A special case of data plane packets, services plane packets are also user-generated packets
that are also forwarded by network devices to other end-station devices, but that require high-touch handling by the
network device (above and beyond normal, destination IP address-based forwarding) to forward the packet.
Examples of high-touch handling include such functions as GRE encapsulation, QoS, MPLS VPNs, and SSL/IPsec
encryption/decryption, etc. From the perspective of the network device, services plane packets may have a transit
destination IP address or may have a receive destination IP address (for example, in the case of a VPN tunnel
endpoint).
Reference: https://tools.cisco.com/security/center/resources/copp_best_practices

QUESTION 7
A network engineer needs to verify IP SLA operations on an interface that shows an indication of excessive traffic.
Which command should the engineer use to complete this action?
A. show frequency
B. show track
C. show reachability
D. show threshold
Correct Answer: B

QUESTION 8

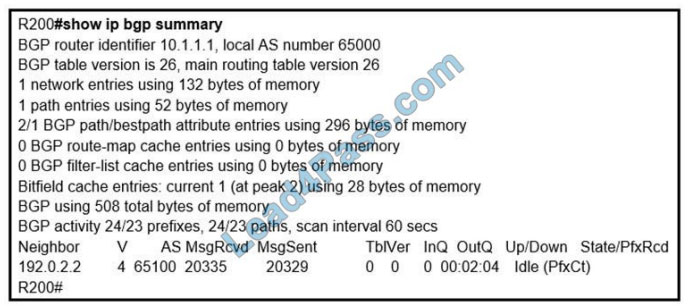

Refer to the exhibit. In which circumstance does the BGP neighbor remain in the idle condition?
A. if prefixes are not received from the BGP peer
B. if prefixes reach the maximum limit
C. if a prefix list is applied in the inbound direction
D. if prefixes exceed the maximum limit
Correct Answer: D
https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/25160-bgp-maximum-prefix.html#b

QUESTION 9
What is the output of the following command: show ip vrf
A. Show\\’s default RD values
B. Displays IP routing table information associated with a VRF
C. Show\\’s routing protocol information associated with a VRF.
D. Displays the ARP table (static and dynamic entries) in the specified VRF
Correct Answer: A

QUESTION 10
Which IGPs are supported by the MPLS LDP autoconfiguration feature?
A. RIPv2 and OSPF
B. OSPF and EIGRP
C. OSPF and ISIS
D. ISIS and RIPv2
Correct Answer: C

QUESTION 11
Which command displays the IP routing table information that is associated with VRF-Lite?
A. show ip vrf
B. show IP route vrf
C. show run vrf
D. show IP protocols vrf
Correct Answer: B
Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/50sg/configuration/guide/Wrapper-46SG/vrf.html#wp1045708

QUESTION 12

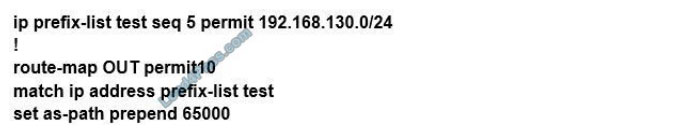

R2 has a locally originated prefix 192.168.130.0/24 and has these configurations:

What is the result when the route-map OUT command is applied toward an eBGP neighbor R1 (1.1.1.1) by using the
neighbor 1.1.1.1 route-map OUT out command?
A. R1 sees 192.168.130.0/24 as two AS hops away instead of one AS hop away.
B. R1 does not accept any routes other than 192.168.130.0/24
C. R1 does not forward traffic that is destined for 192.168.30.0/24
D. Network 192.168.130.0/24 is not allowed in the R1 table
Correct Answer: A

QUESTION 13

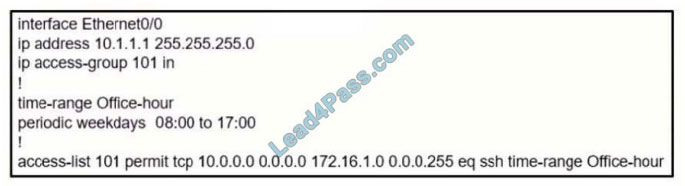

Refer to the exhibit.

An IT staff member comes into the office during normal office hours and cannot access devices through SSH Which
action should be taken to resolve this issue?
A. Modify the access list to use the correct IP address.
B. Configure the correct time range.
C. Modify the access list to correct the subnet mask
D. Configure the access list in the outbound direction.
Correct Answer: A
To ACL should be permit tcp 101 10.1.1.1 0.0.0.0

---
