The latest updated Cisco 350-501 Exam Practice Questions and Answers Online Practice Test is free to share from Lead4Pass (Q1-Q13)

QUESTION 1

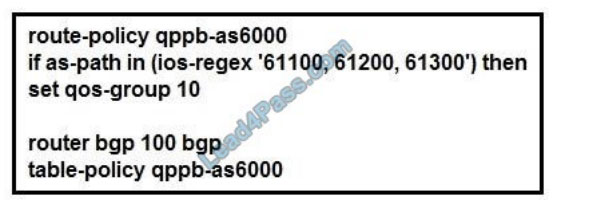

Refer to the exhibit. Which statement supports QPPB implementation?
A. QPPB policies affect only egress traffic.
B. QoS policies rely exclusively on BGP attributes to manipulate traffic.
C. QoS policies are identified in the MPLS forwarding table.
D. QoS policies use BGP to gain full coverage on the network.
Correct Answer: B
The QoS Policy Propagation via BGP feature allows you to classify packets by IP precedence based on the Border
Gateway Protocol (BGP) Attributes like community lists, BGP autonomous system paths, and access lists.



QUESTION 2

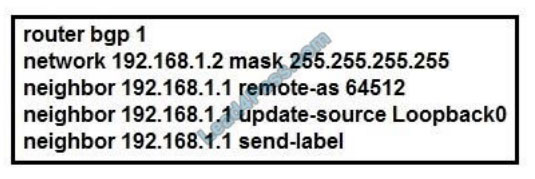

Refer to the exhibit. Which statement about the neighbor statements for 192.168.1.1 is true?
A. The router sends BGP labels for its prefixes to this peer.
B. The router must have TDP configured for the send-label command to operate.
C. The neighbor router receives at least four labels from this router.
D. The router sends only a label for the prefix for Loopback0.
Correct Answer: A

QUESTION 3

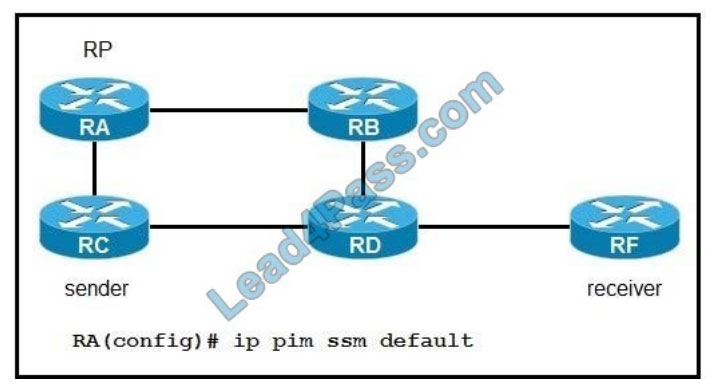

Refer to the exhibit. If router RA is configured as shown, which IPv4 multicast address space does it use?
A. 224.0.0.0/8
B. 225.0.0.0/8
C. 232.0.0.0/8
D. 239.0.0.0/8
Correct Answer: C
Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3850/software/release/3se/multicast/configuration_guide/b_mc_3se_3850_cg/b_mc_3se_3850_cg_chapter_01011.html



QUESTION 4
Refer to the exhibit:
mpls label protocol ldpmpls LDP router-id loopback 0mpls ipip cef
A network operator working for a service provider with an employee id 3715 15:021 applied this configuration to a router.
Which additional step should the engineer use to enable LDP?
A. Disable Cisco Express Forwarding globally
B. Delete the static router ID
C. Enable MPLS LDP on the interface
D. Configure both keyword to enable LDP globally
Correct Answer: C



QUESTION 5
You are testing the capabilities of MPLS OAM ping. Which statement is true?
A. An LSP is not required for the reply to reach the ingress MPLS router.
B. An LSP breakage results in the ingress MPLS router never receiving any reply.
C. MPLS OAM ping works solely with P2P LSPs.
D. MPLS OAM ping works solely with Cisco MPLS TE.
Correct Answer: B



QUESTION 6
Refer to the exhibit. Which additional configuration must an engineer to the adge router to inject a default router into the
MP-BGP address family for the internet_Shared_Services dedicated VRF?
A. router bgp 100 address-family vpnv4 neighbor 1.1.1.1 activate
neighbor 1.1.1.1 send-community extended
neighbor 1.1.1.1 next-hop-self
address-family ipv4 vrf internet_shared_service
network 1.1.1.1
B. router bgp 100 address-family vpnv4 neighbor 1.1.1.1 send-community both exit-address-family
address-family ipv4 vrf internet
no synchornization
network 0.0.0.0
C. router bgp 100 address-family vpnv4 neighbor 1.1.1.1 activate neighbor 1.1.1.1 send-community extended exitaddress-family
address-family ipv4 vrf internet
no synchornization
network 0.0.0.0
D. router bgp 100 address-family vpnv4 neighbor 1.1.1.1 activate neighbor 1.1.1.1 send-community both exit-addressfamily
address-family ipv4 vrf internet_shared_service
no synchornization
network 0.0.0.0
Correct Answer: D



QUESTION 7

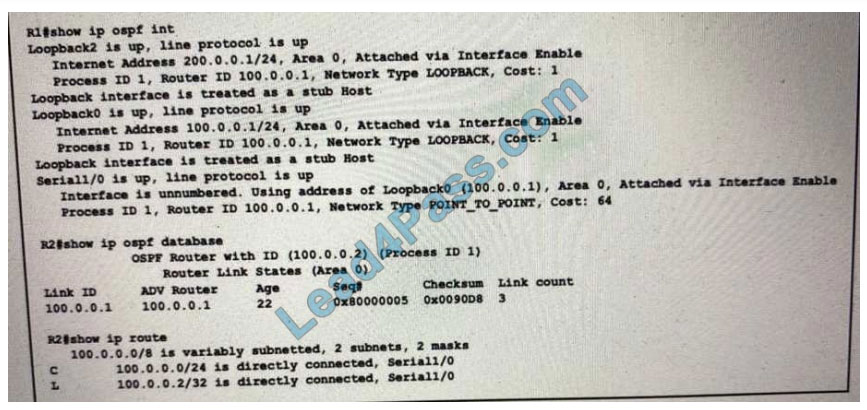

Refer to the exhibit.

While troubleshooting a connectivity issue on router R2, a network engineer with an employee id:3876.13.497 notices
that although it detects three OSPF links from R1, the OSPF prefixes are missing from the routing table.
What is the reason for the problem?
A. The serial interfaces have different MTUs
B. Both loopback interfaces on R1 are configured as a stub
C. The R2 Serial 1/0 interface is configured with an IP address, but the R1 Serial R1 Serial 1/0 interface is
unnumbered.
D. The subnet masks on the serial interfaces are mismatched.
Correct Answer: C



QUESTION 8

Refer to the exhibit. What is the URL used for with REST API?
A. It is used to initiate an FTP session to save a running configuration of a device.
B. It is used to send a message to the APIC to perform an operation on a managed object or class operator.
C. It is used to contact a URL filter to determine the efficacy of a web address.
D. It is used to send a TACACS + authentication request to a server.
Correct Answer: B



QUESTION 9
Refer to the exhibit.

An engineer applied a gRPC dial-in configuration on customer\\’s router to provide connection multiplexing and two-way
streaming.
What does this configuration accomplish in a gRPC?
A. It is the encoding requested by the gRPC server.
B. IT is the encoding that is used for dial-in and dial-out.
C. It is used for encoding with the default protocol buffers
D. It is the encoding requested by the gRPC client.
Correct Answer: A



QUESTION 10

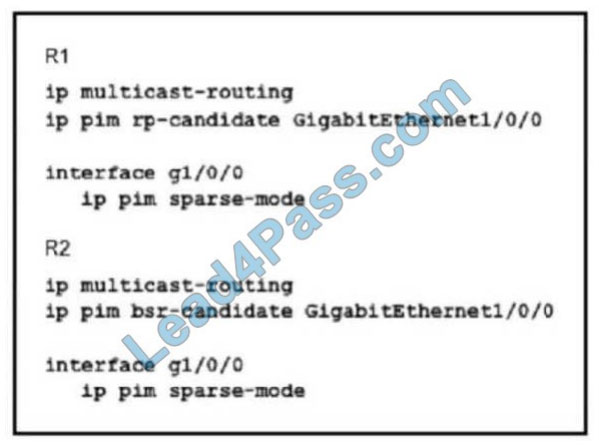

Refer to the exhibit.

An engineer configured multicast routing on client\\’s network. What is the effect of this multicast implementation?
A. R2 floods the information about R1 throughout the multicast domain.
B. R2 is unable to share information because the IP pirn autorp listener command is missing.
C. R1 floods the information about R2 throughout the multicast domain.
D. R2 is elected as the RP for this domain.
Correct Answer: B



QUESTION 11
How does model-driven telemetry use YANG?
A. to reset network devices that malfunction
B. to set informs and traps on clients to report back to a centralized server
C. to subscribe to data that is streamed from a device
D. to poll network devices on a 30-minute interval
Correct Answer: C



QUESTION 12

Refer to the exhibit. Which purpose of implementing NSF with this configuration is true?
A. The router uses NSF to handle RP switchover while allowing neighbor relationships to remain up.
B. The router uses NSF to reduce neighbor-relationship downtime during RP switchover.
C. The router uses NSF to load balance traffic on a routed EtherChannel.
D. The router uses NSF to load balance traffic between two links, with the primary link alternating every 90 seconds.
Correct Answer: A



QUESTION 13

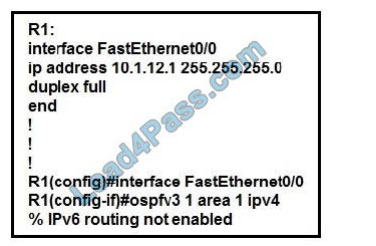

Refer to the exhibit. A network engineer is implementing an OSPF configuration. Based on the output, which statement
is true?
A. OSPFv3 does not run for IPv4 on FastEthernet0/0 until IPv6 routing is enabled on the router and IPv6 is enabled on
interface FastEthernet0/0.
B. In the ospfv3 1 area 1 ipv4 command, area 0 must be configured instead of area 1.
C. OSPFv3 cannot be configured for IPv4; OSPFv3 works only for IPv6.
D. “IPv6 routing not enabled” is just an informational message and OSPFv3 runs for IPv4 on interface FastEthernet0/0
anyway.
Correct Answer: C
ipv6 is enabled globally not on the interface, so A is wrong.

---
